Moistureproof 48W LED Explosion Proof Lighting For Paint Booth
Moistureproof And Waterproof IP65 LED Security Flood Light Use In
Factories
Product Features:
1. Explosion proof design, high and low temperature resistance
2. The lifetime of the light source reaches 100000 hours
3. Multiple installation methods
4. Good heat dissipation
5. Dustproof, moistureproof and waterproof

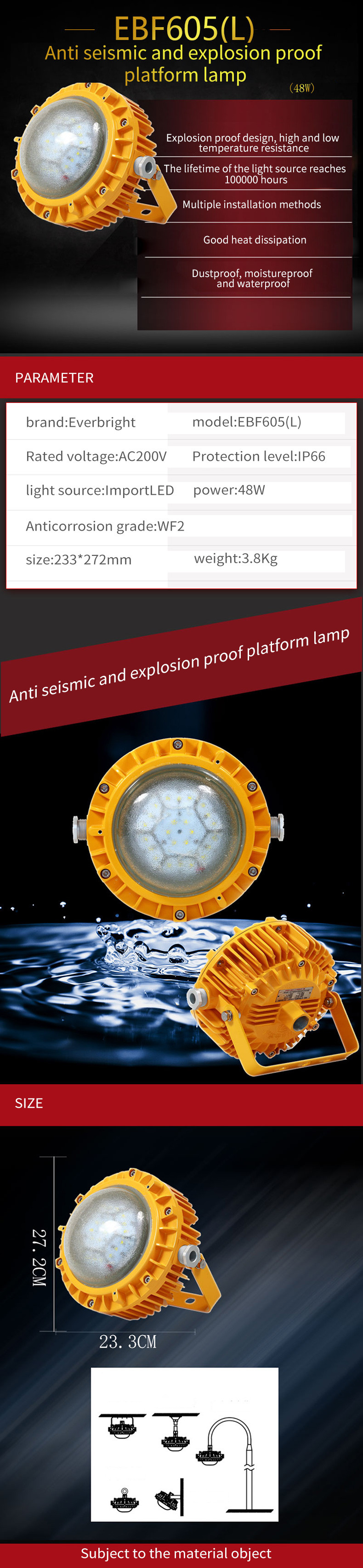

| brand: | Everbright |
| model: | EBF605(L) |
| Rated voltage: | AC200V |
| Protection level: | IP66 |
| light source: | lmportLED |
| power: | 48W |
| Anticorrosion grade: | WF2 |
| size: | 233*272mm |
| weight: | 3.8Kg |
Benefits:
• Energy-efficient: compared with conventional lighting, LED
consumes up to 85% less energy.
• Long life: last to 100,000h rated life o more
• High light efficiency: dedicated honeycomb mirror enhance bigger
lighting area, uniform illumination.
• Horizontal tri-chamber constructure, ensures LED heat will not
affect driver and wiring parts.
• Optimized heat sink: aluminum housing with air diversion
structure removes heat from the LEDs and driver to ensue longer
life.
• Excellent 180° illumination, meet high illumination demand.
• Wide voltage range: AC200V
• Multi-protection: constant current with short-circuit and
overvoltage protection.
• Good EMC: excellent electromagnetic compatibility and
anti-interference.
• SMT technology: surface mounting technology keeps low working
temperature of LED chip.
• Standard material: copper-free Aluminum housing, surface with
epoxy powder coating, tempered glass and stainless steel external
hardware.
Product structure features and working principle:
This series of products are mainly composed of LED components and
driving power supply, integrated heat dissipation flameproof shell,
cable lead-in device, and special tempered glass transparent parts.
When the power is turned on, the drive circuit drives the LED to
emit light in a constant current mode according to the set
operating voltage.
Scope of application:
This series of products are suitable for hazardous environments
containing explosive gases or vapors or combustible dust in Zone 1,
Zone 2, Class IIA, IIB, Group T1--T6, and various indoor and
outdoor operations (oil fields, metallurgy, electric power,
railways, mines) , Port, municipal and other industries) for
lighting use in factories, stations, venues, railway tunnels,
bridges and culverts.
Use environmental conditions:
This series of products can work normally under the following
environmental conditions:
1 The altitude above sea level does not exceed 2000m;
2 Ambient temperature: -20℃～40℃;
3 The atmospheric pressure is 80KPa～110Kpa;
4 The standard oxygen content (volume ratio) in the air is 21%;
5 The average relative humidity is not more than 95% (25℃);
6 In a gas or steam or dust environment that does not damage the
insulation;
7 The pollution level is level 3.
the operation method of product use:
1 The product is connected to the power supply according to the
rated voltage, and the operating environment temperature is
-20℃～40℃.
2 According to the needs of the site environment, determine the
installation method and position of the lamp, and prepare the
corresponding length of the cable with an outer diameter of Φ8～Φ14.
3 When assembling and disassembling the cable, the power supply
must be cut off first, and then the upper cover can be opened.
4 When installing the cable, use an Allen wrench to loosen the 6 M6
screws on the upper shell of the lamp, open the upper cover, and
then loosen the compression nut of the cable inlet, and pass one
end of the cable through the compression nut, flat washer and seal
The loop is introduced into the wiring cavity of the lamp body, and
the L, N of the cable and the grounding wire (yellow-green wire)
are respectively fixed on the wiring terminal. And check that the
ground wire on the other side of the terminal should be connected
to the inner ground screw. Then tighten the cable compression nut
and fix the upper shell. Note: Another lead-in device with (solid)
plug is used when parallel lamps are used.
5 Install and fix the lamp at the selected installation position.
6 Connect the cable to the rated voltage according to the
requirements of the national standard GB 3836-2010 to illuminate.
