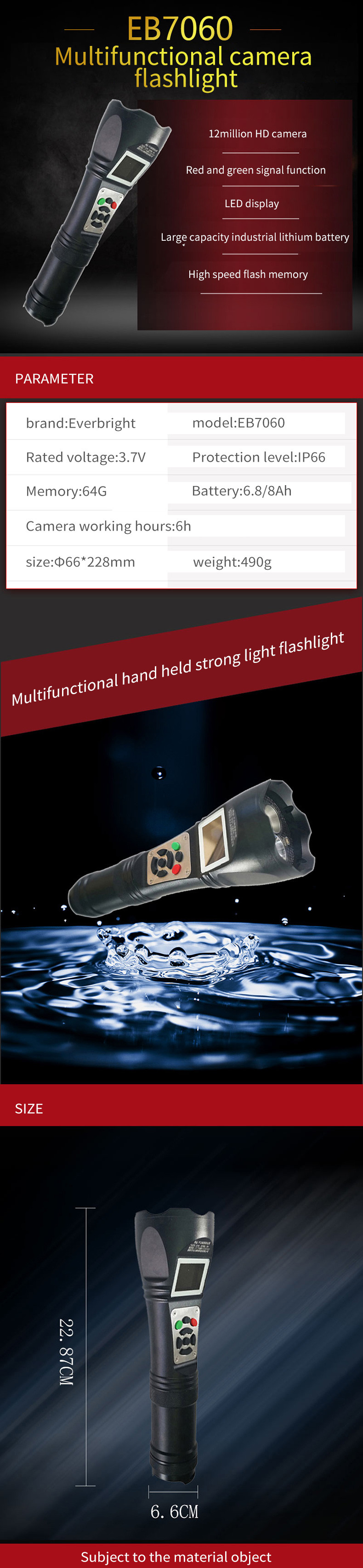

Multifunctional 64G Memory IP65 LED Camera Flashlight With RTOS
System
Waterproof Ip65 Video Camera Torch Light Led Dvr Camera Flashlight
With RTOS System
This product is suitable for police, fire fighting, prospecting,
electric power, power grid, petroleum, petrochemical, chemical
industry, railway, tourism, etc. It can be used as a torch, and it
can also be used for taking pictures or video and audio recording
in real time on different occasions.
The company's EB7060 camera flashlight uses RTOS system (English
called Real Time Operating System, RTOS for short).
RTOS is a real-time operating system. The real-time operating
system means that when external events or data are generated, it
can be accepted and processed at a sufficiently fast speed, and the
results of its processing can be used to control the production
process or the processing system within a specified time. The
operating system that responds quickly and controls all real-time
tasks to run in unison is widely used in microcontrollers and
microprocessors.
| Rated voltage | V | 3.7 |
| Rated capacity | mAh | 6800 |
| LED | rated power | W | 1 |
| Average service life | h | 100000 |
| Color temperature | K | 5500 |
| Continuous working time | Spotlight | h | ≥14 |
| Floodlight | ≥14 |
| Red signal light | ≥48 |
| Green signal light | ≥48 |
| Charging time | ≤6 |
| Shooting time | flood light state | ≥7 |
| Do not turn on the light (cyclic video recording) | ≥13 |
| Flood light state + open screen | ≥6 |
| Viewing angle | degree | 90 |
| Camera pixel | million | 1200 |
| Photographic image resolution | optional
4032×3024/3648×2736/3264×2448/2592×1944/2048×1536/1920×1080/1280×960/640×480 |
| Camera image resolution | optional 1920×1080/1280×720/848×480/640×480 |
| Storage space capacity | G | optional 32/64 |
| Video file size | MB/minute | 35～100 |
| Video format | MP4 |
| Data interface | Type-C(USB.3.1) |
| Battery life | cycle | about 1000 times |
| Dimensions (outer diameter×length) | mm | Φ66×228 |
| Magnetic function component | / | optional |
| Weight | g | 435 |
| Protection grade | IP65 |
Explosion-proof grade:
1. Explosion-proof mark: ExibIICT4 Gb
2. Explosion-proof serial number: 81608113
Structure and performance introduction:
1. Made of all aluminum alloy material, the heat dissipation effect
is much better than that of a plastic camera flashlight-of course,
the cost is much higher than that of a plastic camera flashlight.
2. It is the most stable camera flashlight in the industry.
3. Using the principle of ergonomics, using a unique 30-degree LCD
display, you can easily observe the video recording situation at
will.
4. The main function of the aluminum alloy casing is to ensure good
heat dissipation, so that the electronic components of the
flashlight can be well dissipated, so that its service life can be
prolonged, and the aluminum alloy casing can effectively prevent
bumps and other chemical reagents in daily work. Fly corrosion
caused machine failure.
5. The contact body of the switch button is plated with 3um gold,
which ensures the sensitivity and wear resistance of the button.
Lighting function:
Spotlight and floodlight can be switched arbitrarily, which can
realize long-distance search light and close-range large-scale
lighting. The color temperature is 5500K, which ensures the
restoration of photos.
Signal indication function:
Imported red and green signal light sources are used, and the
visible distance can reach more than 5000 meters.
Camera function:
An image sensor is installed inside the lamp, which can realize the
shooting of still pictures, and the resolution of the photographed
image can be set freely, which can meet the needs of lighting while
also meeting the needs of photography in a specific environment.
Camera function: An image sensor is installed inside the lamp,
which can realize the video recording function. The camera image
resolution can be set freely to meet the lighting needs and also
meet the camera needs in a specific environment (12 million pixels,
photo and video resolution can be set selected).
